Project: Slag crushing plant

Project

Slag crushing plant

We built a custom made dedusting solution to prevent dust emissions into the environment during the handling and crushing of hot slag.

For this project, customer-specific machines and an one of a kind extraction hood were designed by the use of CFD models to be able to catch the hot fumes and fine dust during the process steps.

Specifications

Application Dedusting Desulp-slag plant

Start-up date 2020

Type of Filter MSF 2-10-8/4-4

Filter surface 1.550 m²

Gas flow 120.000 m³/hr

Design Temperature 150°C

Design Pressure -750 daPa

Impressions

Other projects in the same industry

Project:

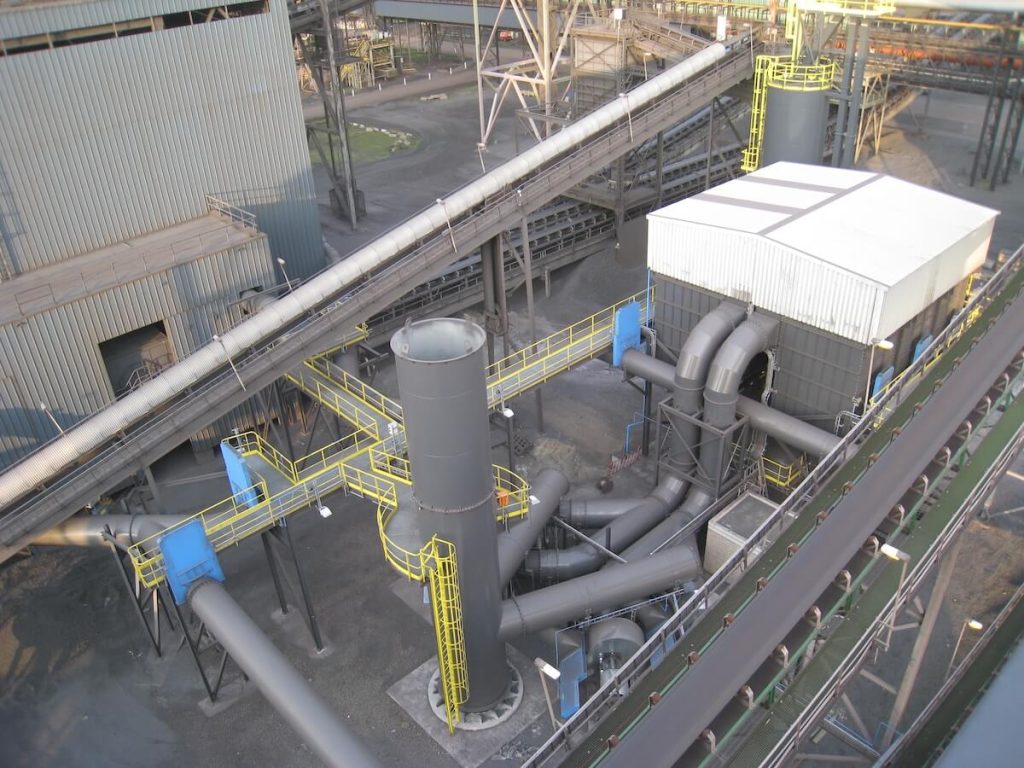

Cokes dedusting
